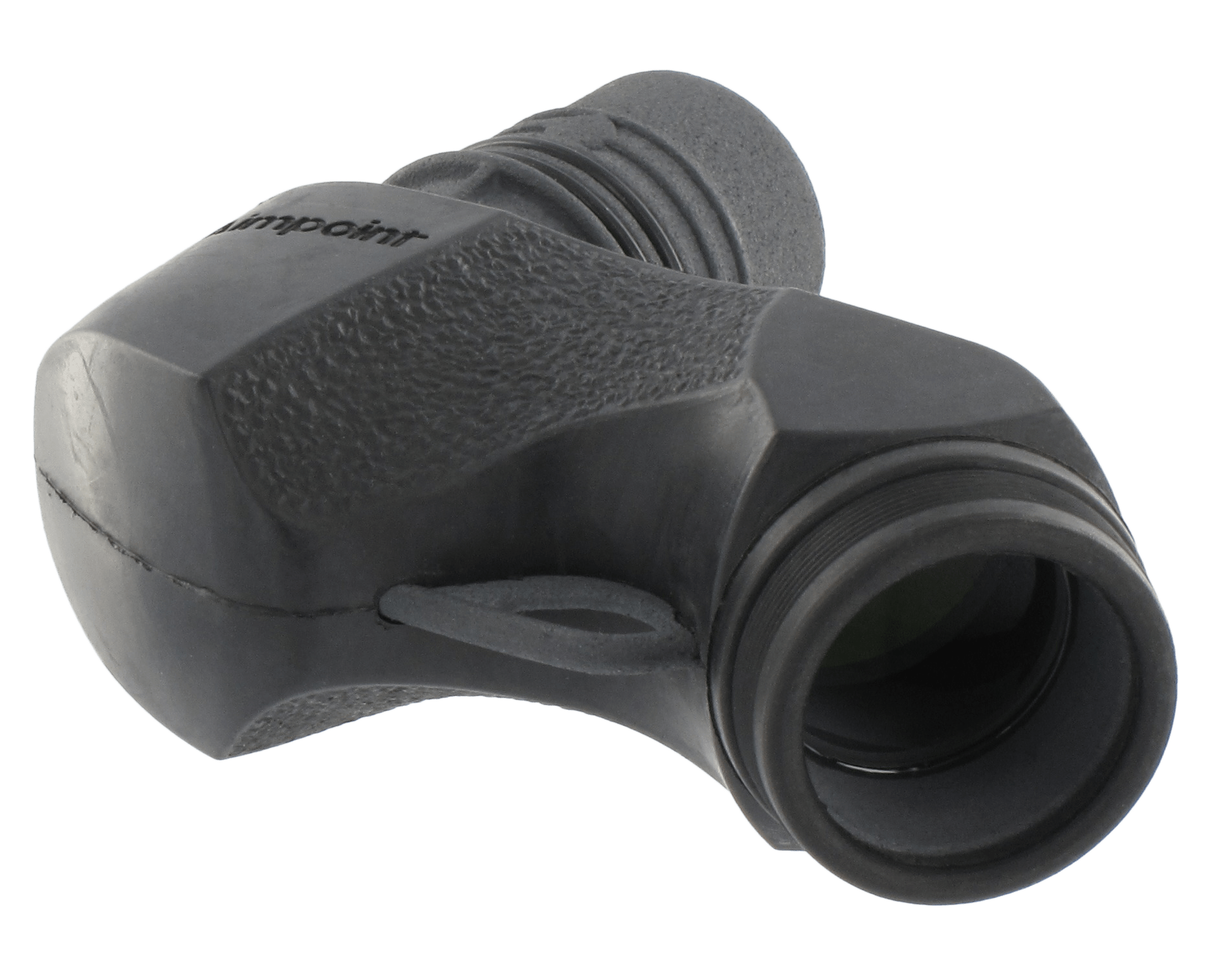

Aimpoint Concealed Engagement Unit – module only
The Aimpoint® CEU (Concealed Engagement Unit) gives the operator the ability to observe and/or engage a threat from a concealed or covered position. The Aimpoint CEU easily rotates from side to side, so an operator can safely look around either right or left-hand corners, over barricades and under vehicles. It can also be quickly removed in order to rapidly return to direct engagement.
MECHANICAL INTERFACE

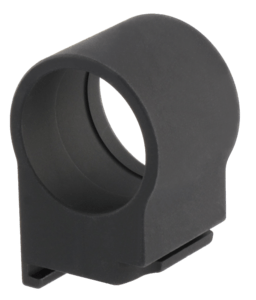

- The Aimpoint CEU rotates a full 260° allowing the operator to safely look around either right or left-hand corners, up staircases or down tunnels from almost any angle. To mount the CEU, use the Aimpoint TwistMount base and choose the CEU ring which allows co-witnessing with the Aimpoint sight.
UNIQUE FEATURES
- Designed to be compatible with all Aimpoint® sights
- Designed to provide a “true image,” NOT a reversed mirror reflection
- Allows aiming over walls, under cars, around corners without exposing head and torso
- Does not affect the weapon’s point of impact
- Can be passed between team members
- Rugged, affordable device
- Small and light
- Easily removed from the weapon if necessary
- Turns a standard infantry weapon into a scouting tool
- No need to equip a team member with a specialized weapon
- Rotates a full 260°
- Designed to withstand extreme conditions
TECHNICAL SPECIFICATIONS:
GENERAL
- Part.No: 12156
OPTICAL
- Operating principle: Dual mirror reflective device for true target view
- Optical magnification: 1x
- Aiming dot size: Uses the reticle of the combining sight
- Optical signature: No optical signature
- NVD compatible: No
- Clear aperture: 25 mm
- Eye relief: Unlimited
POWER SOURCE
- Battery type: No power required
PHYSICAL
- Length conf: 90 mm (3 9/16″)
- Width: 115 mm (4 1/2″)
- Height sight only: 40 mm (1 9/16″) CEU only, detached from the CEU Rise Ring and TwistMount base
- Height conf: No standard config, can be mounted with 2 different configs.
- Weight sight only (incl battery): 130 g (4,6 oz), CEU only
- Weight conf: With Low Top ring 165 grams (5,8 oz). With High Top ring 185 grams (6,5 oz).
- Housing material: High strength glass reinforced polymer
- Housing finish and color: Grey, non-glare finish
- Material mount and spacer std conf: Used with either the CEU High- or Low Rise Ring
- Surface treatment: Rubber, black, non-glare finish
- Height of optical axis – sight and mount: 30 mm (1 3/16″) (CEU Low Rise Ring)
- Height of optical axis – sight, mount and Micro spacer XX: 39mm (1 9/16″) (CEU High Rise Ring)
- Adjustment: Rotation around optical axis: ±130°, measured from CEU pointing vertically upwards
ENVIRONMENTAL
- Temperature range operation: 5°C to 55°C (41°F to 131°F)
- Temperature range storage: -51°C to 71°C (-60°F to 160°F)
- Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times
- Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic
- Immersion, static: Operates after immersion. Limits: Depth: 25m (83 ft.)
- Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature)
- Vibration: Operates despite vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min
- Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)
Applications: Law Enforcement and Armed Forces carbines, rifles, shotguns, sub-machine guns and machine guns
