Description
UTG PRO MTU055SSM Monolithic M-LOK Handguard for HK MP5
UTG PRO® MP5 Monolithic M-LOK® Handguard, Type III Class 2 Matte Black Anodized 6061-T6 Aluminum, M-LOK® Handguard with Low Profile Extended Length Picatinny Flat-Top, Patented Claw Mount Locking Interface, Compatible with Most Collapsible and Fixed Stocks, Steel Hardware Included.
- Proudly designed and made in USA
- Monolithic Design Combines M-LOK® and Optics Real Estate into One Rigid Mount
- Patented Claw Mount Locking Interface
- Extended 16 Slot Picatinny Flat-Top with Cutout for Serial Number Identification
- 17 Full and 5 Half M-LOK® Slots Around Circumference of Handguard
- Chamfered Locking Recess Notch Prevents Hot Spots and Snag Points while Manipulating Charging Handle
- Overall Lightweight at 9.8 Oz Installed
- Integral Left and Right Side Anti-Rotational QD Sockets
- Designed for 9mm Receiver MP5 and Clones and Compatible with Most Collapsible and Fixed Stocks
- Type III Class 2 Matte Black Anodized 6061-T6 Aluminum with Dehorned Corners and Melted Contours
More Information:
- Color(s) Black
- Compatible with MP5® & MP5® Clones
- Fasteners (4X 6-32 x 0.5″ Pan-headed T10 Screw) / (4X 6-32 x 0.375″ Flat-headed T10 Screw) / (1X 10-32 T10 Brass-tipped Set Screw)
- M-LOK Slots 17 (full) / 5 (half)
- Made in USA Yes
- Materials 6061-T6 Aluminum
- Modular System M-LOK®
- Picatinny Slots 16
- Surface Finish Anodized
- Torque Value (QD Swivel Adaptor) 5 in-lbs
- Weight 9.8 oz (278 g)

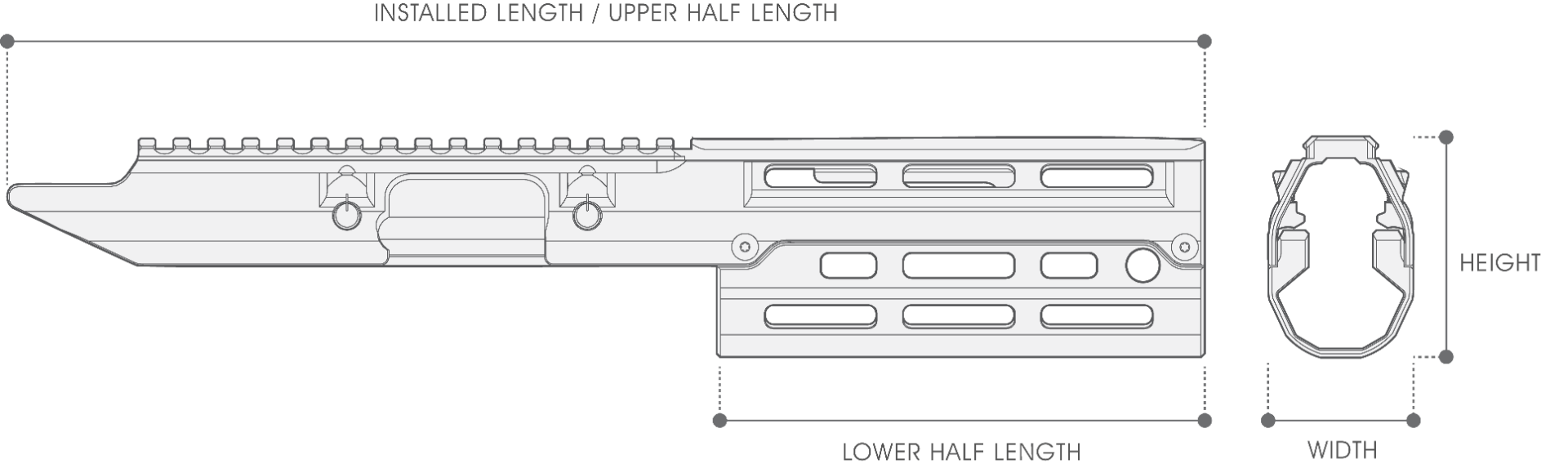

- Height Upper Half: 1.45 in (36.8 mm), Lower Half: 1.43 in (36.3 mm)
- Installed Height 2.07 in (52.6 mm)
- Length Upper Half: 13.65 in (346.7 mm), Lower Half: 5.56 in (141.2 mm)
- Width 1.69 in (42.9 mm)
